Nerf Shooting Gallery

Status: Complete

Contents

Introduction

A friend's son was given a Nerf gun as a present and was shooting various things around the house, but mostly his sister.

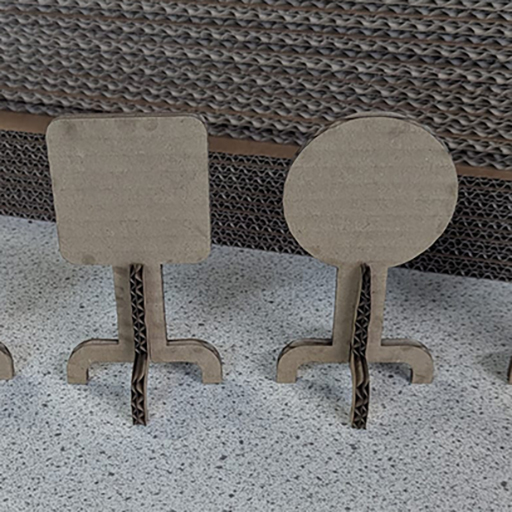

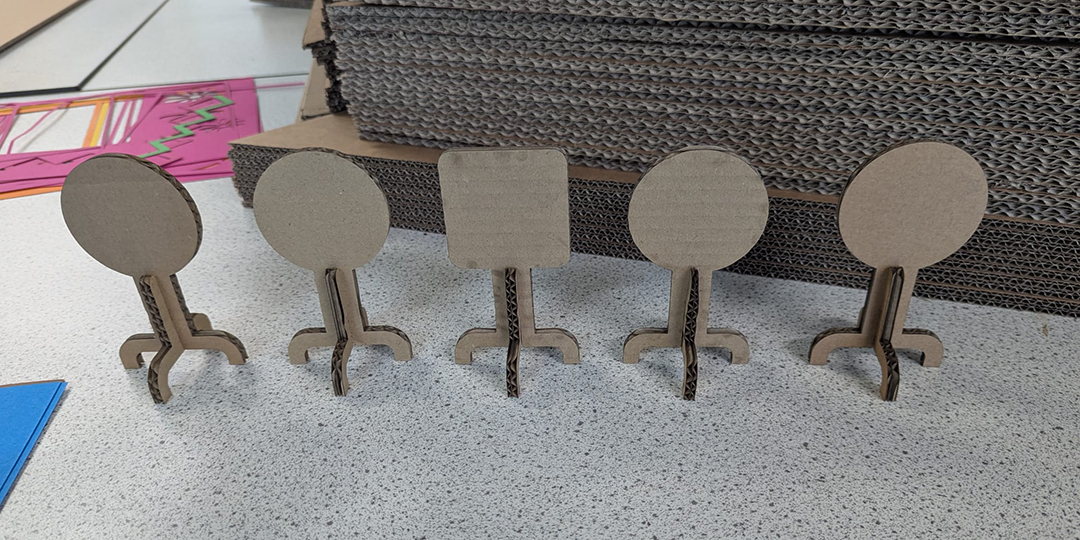

I'm lucky enough to have access to a laser cutter and a large supply of offcut cardboard (from another project), so to direct his aim away from human targets I put together a little laser-cut cardboard target.

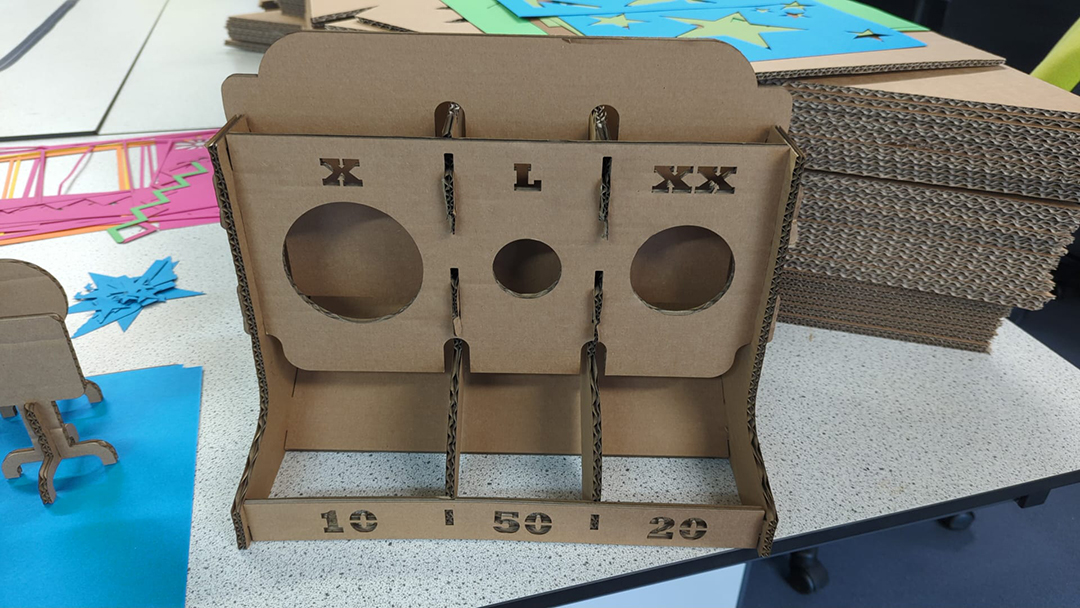

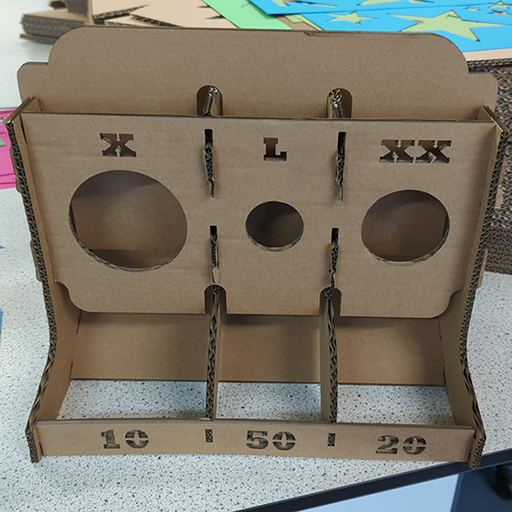

It's a relatively simple design with two slotted sides holding a target face, a back plate, a front strip and an angled base. There is a hanging plate suspended behind the target face which is intended to swing back when hit by a dart, hopefully taking some of the impact so the dart drops on to the angled base and ends up in the score area behind the front strip.

Materials and tools I used for a single target:

• Double-walled corrugated cardboard (800mm x 400mm): 5 sheets required
• 80w C02 Laser Cutter
• Adobe Illustrator (software to draw the vector files)
